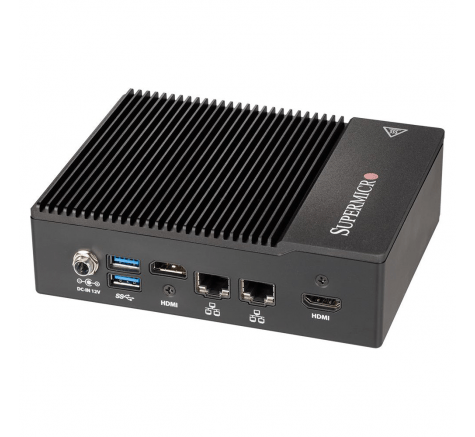

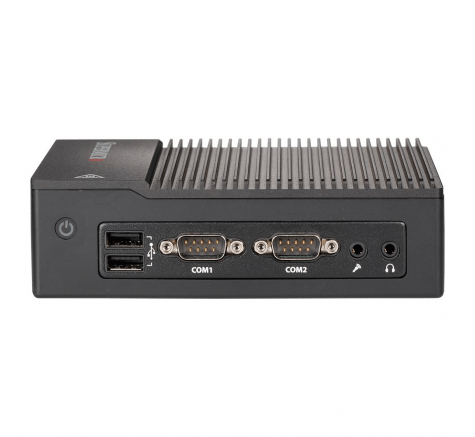

SuperMicro – SuperServer E50-9AP (Black)
Motherboard – Super A2SAP-H
Processor/Cache
CPU – Intel® Atom® processor E3940
Single socket FCBGA 1296
9.5W, 4C
System Memory
Memory Capacity – Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
Memory Type – DDR3L up to 1866MHz
DIMM Sizes – 8GB, 4GB
Memory Voltage – 1.35 V
On-Board Devices
Chipset – System on Chip
Network Controllers – Dual LAN with Intel® Ethernet Controller I210-IT
Audio – ALC 888S HD Audio
Graphics – Intel® HD Graphics
HDMI (max. resolution up to 3840 x 2160 @ 30Hz)
Input / Output
LAN – 2 RJ45 Gigabit Ethernet LAN ports
USB – 2 USB 3.0 ports (rear)
2 USB 2.0 ports (front)
Video – 2 HDMI ports
COM – 2 COM (RS-232/422/485)
TPM – 1 TPM 2.0 onboard
Fanless design – Lockable 12V DC 40W power adapter
